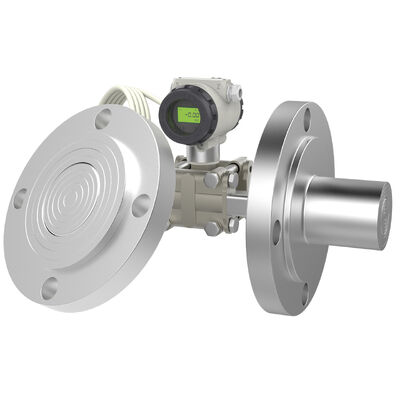

Single-insertion Double-flange Level Transmitter
Detail Information
Place of Origin:
Jiangsu, China
Brand Name:
JSHQ
Certification:
CE, SIL
Model Number:
HQ-3051
Product Description
1. Product Brief Introduction:
The key raw materials, components, and parts of the flange level transmitter are all imported or sourced from joint ventures. The entire unit undergoes rigorous assembly and testing. This product features advanced design principles, a complete range of specifications, and ease of installation and use. Because its appearance fully integrates the structural advantages of the two most popular and widely used transmitters in China (Rosemount 3051 and Yokogawa EJA), it offers users a refreshing experience. Furthermore, it is directly interchangeable with traditional series products in terms of installation, demonstrating strong versatility and substitutability. To adapt to the continuous improvement and development of automation levels in China, this series of products, in addition to its compact and exquisite design, also features intelligent functions with the HART fieldbus protocol.
The 3051LT flange level transmitter can accurately measure the level and density of various containers. It is available with flat flanges and insertion flanges, in 3-inch or 4-inch sizes, and in 1501b and 3001b specifications. Custom flanges are also available upon request. Flange diaphragm materials are optional.
2. Product Features:
● High accuracy ● Continuously adjustable range and zero point externally ● Good stability ● Positive migration up to 500%, negative migration up to 600% ● Two-wire system ● Adjustable damping, overvoltage resistance ● Solid-state sensor design ● No moving mechanical parts, low maintenance ● Lightweight (2.4kg) ● Unified structure across the entire series, high interchangeability ● Miniaturized (166mm total height) ● Selectable diaphragm material for contact medium ● Strong single-sided overvoltage resistance ● Low-pressure cast aluminum alloy housing
Features of the intelligent type HQ1151/3051/3351/3851 flange level transmitter:
● Overall Performance: +(-) 0.25 F.S ● Superior measurement performance for pressure, differential pressure, level, and flow measurement ● Digital Accuracy: +(-) 0.05% ● Analog Accuracy: +(-) 0.75% +(-) 0.1% F.S ● Stability: 0.25% for 60 months ● Range Ratio: 100:1 ● Measurement Rate: 0.2S
● Compact (2.4kg) All-stainless steel flange for easy installation ● Process connection compatible with other products for optimal measurement ● World's only sensor using an H-alloy sheath (patented technology) for excellent cold and hot stability ● Intelligent transmitter using a 16-bit computer
● Standard 4-20mA with HART-based digital signal for remote control ● Supports upgrades to fieldbus and field control technologies. ● Differential Pressure: 0~1.3-1MPa
3. Technical Specifications:
Liquid-wetting material |
Standard configuration: 316L stainless steel; Typical configuration: titanium alloy, tantalum diaphragm. |
power supply |
12～36VDC 24VDC is recommended (power consumption ≈ 30mA). |
Output |
4～20mA (standard configuration) 2-channel relay output (optional for display type) |
Temperature drift |
≤±0.05%FS/℃ (Temperature range -20～85℃) |
Dial |
Typical value: ≤±0.02%/℃ Maximum value: ≤±0.04%/℃ |
Full |
Typical value: ≤±0.02%/℃; Maximum value: ≤±0.04%/℃ |
Zero drift |
≤0.3% of full scale |
Thermal hysteresis |
≤±0.5% of full scale |
accuracy |
≤±0.5% of full scale |
medium temperature |
-25℃ ～ +85 / +150 / +200℃ |
Storage temperature |
-35℃～+85℃ |
Display range |
-1999～9999 |
roughness |
Ra＜0.8 |
Mechanical shock |
100g/1ms |
Mechanical vibration |
max.20g:15-2000Hz |
Electromagnetic compatibility |
≤±0.5% of full scale |
Filling fluid |
1: Silicone oil 2: Synthetic oil or sanitary oil |
Response time |
Current output max. 2ms Voltage output max. 10ms |
Protection level |
Standard configuration: IP65 Custom configuration: IP67 |
Installation location |
(Verification position: transmitter vertical, liquid contact diaphragm facing upwards) |
4. Overall dimension:
T351RD Clamp type & T351RD Flange type
5. Selection:
| HQ3051- | Flange Type Liquid Level Transmitter | |||||||||
| Type | LT- | Single flange liquid level transmitter | ||||||||
| LT-C- | Single plug flange liquid level transmitter | |||||||||
| LT-Y- | Remote transmission single flange liquid level transmitter | |||||||||
| DPYC- | Double flange liquid level transmitter | |||||||||
| DPXC- | Double plug flange liquid level transmitter | |||||||||
| GP | Single plug double flange liquid level transmitter | |||||||||
| Specification | 0 | 0-1.6～10MPa | ||||||||
| 3 | 0-1.3～7.5KPa | |||||||||
| 4 | 0-4~40KPa | |||||||||
| 5 | 0-40~200KPa | |||||||||
| 6 | 0-0.16KPa~1.0MPa | |||||||||
| 7 | 0-345～2068KPa | |||||||||
| 8 | 0-117KPa～1MPa | |||||||||
| 9 | 0-0.4～2.5MPa | |||||||||
| Output signal | E | Non intelligent type (4-20mA Output) | ||||||||
| S | Intelligent type(HART protocol+4-20mA) | |||||||||
| Insertion method | A0 | 平 | ||||||||
| A2 | 50 | |||||||||
| A4 | 100 | |||||||||
| A6 | 150 | |||||||||
| Wetted material | B0 | 316LSST | ||||||||
| B2 | HartzC-276 | |||||||||
| B4 | Tantalum | |||||||||
| Install flange | □ | Flange Specification | ||||||||
| Structural material | A1 | Flange joint/exhaust/drain valve/isolation diaphragm | ||||||||
| 22 | 316 stainless steel/316 stainless steel/316 stainless steel | |||||||||
| 23 | 316 stainless steel/316 stainless steel/Hastelloy C | |||||||||
| 24 | 316 stainless steel/316 stainless steel/Monel | |||||||||
| 25 | 316 stainless steel/316 stainless steel/Tantalum | |||||||||
| 33 | Hastelloy C/Hastelloy C/Hastelloy C | |||||||||
| 35 | Hastelloy C/Hastelloy C/Tantalum | |||||||||
| 44 | Monel/Monel/Monel | |||||||||
| Additional features | Z | 1/2NPT taper pipe threaded joint | ||||||||
| D | Flameproof type EXd II CT6 | |||||||||
| B1 | Pipe bending bracket | |||||||||
| B2 | Board mounted bending bracket | |||||||||
| B3 | Pipe mounted flat bracket | |||||||||
| C0 | 1/2-14NPT cone tube internal thread joint | |||||||||
| C1 | 1/2-14NPT welding pressure pipe at the rear of the pressure jointφ14 | |||||||||
| C2 | T-shaped threaded joint M20×1.5,equipped with rear weldingФ14 spherical cone connector of pressure pipe | |||||||||
| D | Flameproof type EXd II CT6 | |||||||||
| D1 | The side relief valve is located at the upper part of the pressure chamber | |||||||||
| D2 | The side relief valve is located at the lower part of the pressure chamber | |||||||||
| M1 | 0~100% linear indicator table | |||||||||
| M2 | LED digital display | |||||||||
| M3 | LCD digital display | |||||||||
| S1 | A remote transmission device | |||||||||
| S2 | Two remote transmission devices | |||||||||
| PD | Paired flanges, gaskets, and screws | |||||||||
| Measurement accuracy | 1 | 0.08% | ||||||||
| 2 | 0.20% | |||||||||
| 3 | 0.50% | |||||||||
| 4 | 1.00% | |||||||||
6. Installation:
The flange installation standards are 3 "and 4" according to ANSI, and the flange grades are divided into 150LB (2.5MPa) and 300LB (5.0MPa). The flange installation dimensions are shown in the following chart. If the user adopts the GB9116-88 standard, please specify DN=80, 100, PN=2MPa. The materials for the liquid receiving membrane include 316L, Hastelloy C-276, Monel, tantalum, etc. If not specified by the user, 3 "150LB flange and liquid receiving membrane material 31 shall be supplied.
