The HQSYG quartz tube level gauge is developed using the latest high-tech advancements from both domestic and international sources. It is a replacement product for ordinary glass plate level gauges and is widely used in various transparent liquid containers and boilers in industries such as petroleum, chemical, power, and metallurgy. It is suitable for measuring the liquid level of various liquids and chemical raw materials such as water, gasoline, liquefied petroleum gas, liquid ammonia, propane, propylene, aromatics, and acids. It is also suitable for measuring the interface between two different media with different densities.
The HQSYG series quartz tube level gauge is developed using the latest high-tech advancements from both domestic and international sources. It is a replacement product for ordinary glass plate level gauges and is widely used in various transparent liquid containers and boilers in industries such as petroleum, chemical, power, and metallurgy. It is suitable for measuring the liquid level of various liquids and chemical raw materials such as water, gasoline, liquefied petroleum gas, liquid ammonia, propane, propylene, aromatics, and acids. It is also suitable for interface measurement of two different media densities. The colored liquid level gauge is installed on various containers and boilers, allowing for direct observation of liquid level changes. The liquid phase is displayed in green, the gas phase in red, and the interface measurement shows a three-color interface. The contrast between the liquid and gas phases is very high, making it clear and easy to see from a distance and during nighttime inspections. It successfully overcomes the shortcomings of ordinary plate-type level gauges, such as being bulky, having a large sealing area, being prone to leakage, and having unclear displays that are difficult to read from a distance.
HQSYG Quartz Tube Level Gauge Main Technical Parameters
1. Special 99.99% SiO2 transparent quartz tube, with a deformation point of 1077℃, softening point of 1730℃, compressive strength of 1170 Kg/cm³, and expansion coefficient of 5.5 x 10⁻⁷. After special processing, it possesses high temperature and high pressure resistance and excellent mechanical properties.
2. Working pressure: 1.6, 2.5, 4.0, 6.3 MPa
3. Working temperature: -50～+520℃
4. Measuring range L: Measuring range is determined by the center point: 300, 500, 800, 1100, 1400, 1700, 2000 mm; Boiler water level gauge: 300, 400, 440 mm. Please specify dimensions for special specifications.
5. Steam heating jacket: Working pressure 1.0 MPa, pipe connection size G1/2 internal thread.
6. Flange connection dimensions: Adopts the latest HG20592-2063597 flange standard implemented by the Ministry of Chemical Industry.
7. If the user uses other flange standards, please specify when ordering.
8. Steel ball automatic closing pressure: Greater than 0.2 MPa
9. Weight: 15-30 Kg
HQSYG Quartz Tube Level Gauge Features:
Clear liquid and gas phase display, no blind spots, excellent sealing performance, resistant to high temperature and high pressure, anti-sticking, lightweight, long service life, no leakage, simple structure, and easy cleaning and maintenance.
HQSYG Quartz Tube Level Gauge Selection Guide
|
Product Name
|
Model
|
Application
|
Pressure |
|
Color liquid level gauge
|
UNS-A-1
UNS-B-1 UNS-C-1 |
Suitable for measuring the liquid level and interface of transparent, colorless liquids in well-lit environments.
|
1.6MPa
2.5MPa 4.0MPa 6.3MPa |
|
Color liquid level gauge
|
UNS-A-2
UNS-B-2 UNS-C-2 |
The UNS-□1 is equipped with a steam-heated jacket, suitable for cold weather conditions.
|
|
|
Color liquid level gauge
|
UNS-A-3
UNS-B-3 UNS-C-3 |
The UNS-□1 is equipped with an anti-frost device, used for low-temperature media to prevent frost formation on the surface caused by the low temperature.
|
|
|
Color liquid level gauge
|
UNS-A-4
UNS-B-4 UNS-C-4 |
For measuring the liquid level and interface of colored liquids in low-light conditions or during nighttime monitoring, the UNS-□1 model is equipped with an illumination device.
|
|
|
Color liquid level gauge
|
UNS-A
|
The level gauge has valves at both ends, and these valves are equipped with safety devices. This prevents the container's contents from leaking out in case of accidental breakage of the quartz tube. Due to the small diameter of the valve passages, this type of level gauge is only suitable for measuring low-viscosity fluids.
|
|
|
Color liquid level gauge
|
UNS-B
|
It uses three-way flange connections at both ends and has no safety device. Due to its 20mm diameter, it can measure the liquid level of relatively viscous media.
|
|
|
Blind-spot-free color liquid level gauge
|
UNS-C
|
The connection at both ends uses a three-way fitting, and there are no safety devices. Due to the 20mm diameter, it can measure the liquid level of relatively viscous media; the measuring range is equivalent to the display height.
|
|
HQSYG Quartz Tube Level Gauge Installation Diagram

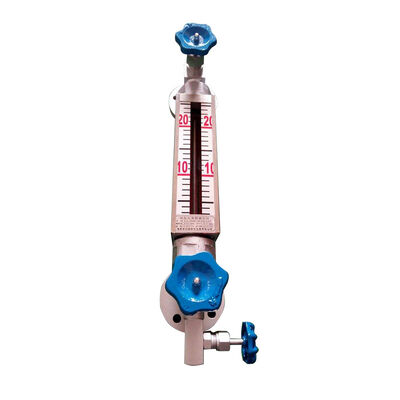

Actual product image of the HQSYG quartz tube level gauge
