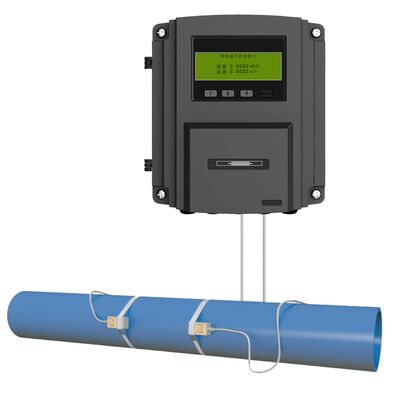

External-mounted ultrasonic flowmeter
| MOQ: | 1 set |
Ultrasonic Flow Meter Features
● Low Power Consumption, Digital Design. The entire unit adopts a low-power hardware and software design, digitally transmitting, receiving, and analyzing ultrasonic signals, achieving advanced digital design. The total power consumption is less than 0.3W. The battery-powered version consumes only 0.2mW.
● Excellent Measurement and Management Functions. Advanced analysis and calculation technologies are used in the software design to ensure accurate measurement. Advanced management functions are also included, allowing users to access instrument operating data from any time in the past ten years.
● Flexible Maintenance. Adopting adaptive reversing technology, this series of instruments can automatically eliminate zero-point errors during measurement and allows for easy replacement of converters and sensors during maintenance without affecting measurement accuracy.
● Chinese Character Display. All data input and measurement process displays are in Chinese characters, allowing operators to use the instrument without a manual.
● Insertion Type Ultrasonic Flow Meter: Can be installed and maintained without production interruption. Utilizing a ceramic sensor, installation can be performed without production interruption using our company's specialized drilling equipment. Generally, single-channel measurement is used; for improved accuracy, a three-channel sensor can be selected.
● Pipe-mounted ultrasonic flow meter: Requires cutting the pipeline for installation, but subsequent maintenance can be performed without interrupting production. Single-channel or three-channel sensors can be selected.
● Clamp-on ultrasonic flow meter: Enables both fixed and mobile measurements. Uses a special coupling agent (room temperature curing silicone rubber or high-temperature long-chain polymeric grease) for installation, without damaging the pipeline.
| Item | Insertion Ultrasonic Flowmeter | Pipeline Ultrasonic Flowmeter | Clamp-On Ultrasonic Flowmeter |
| Pipe Diameter Range (mm) | DN80-4000 | DN20-2000 | DN20-4000 |
| Flow Velocity (m/s) | 0.01~12 | 0.01~12 | 0.01~12 |
| Accuracy (%) | Single Channel: 1 | Single Channel: 0.5 (Calibrated: 0.5) | 1.5 |
| Double Channel: 1 | Double Channel: 0.5 | ||
| Triple Channel: 1 | Triple Channel: 0.5 | ||
| Measured Medium | Tap water, river water, seawater, groundwater, cooling water, hot water, sewage, lubricating oil, diesel oil, chemical liquid, other homogeneous fluids | ||
| Pipe Material | Metal (e.g., carbon steel, cast iron, stainless steel, aluminum, etc.) | ||
| Non-metal (e.g., PVC, organic glass, etc.) | |||
| Pipe Lining Material | FRP, sand, rubber, etc. | ||
| Signal Output | 1. 4-20mA: Impedance ≤800Ω, accuracy 0.1% | ||
| 2. Relay output: Photoelectric isolation, open-collector output, transmission distance <500m | |||
| 3. RS-485 photoelectric isolation: Baud rate selectable, transmission distance >1.6km | |||
| 4. Printer: RS-232 single-port mode (printer is optional) | |||
| 5. M-BUS | |||
| Keyboard | 2×8-button keyboard | ||
| Display | 2×10-digit Chinese or English display | ||
| Measurement Functions | Display instantaneous flow, instantaneous velocity, positive total flow, negative total flow, net total flow, total running time, instantaneous heat supply, total heat supply, power-off time, etc. | ||
| Data Storage | Can store up to 720 hours, 365 days, 36 months, and 10 years of measurement data (including instantaneous flow, total flow, power-off time, etc.) | ||
| Ambient Temperature | Transducer: -10~45°C (specify for special environments) | ||
| Sensor: -40~+60°C (normal temperature type) | |||
| -40~+160°C (high temperature type) | |||
| Sensor Material | Stainless steel and ceramic | Stainless steel and ordinary carbon steel | Normal temp: Nylon |
| High temp: Alloy | |||
| Sensor Pressure Resistance | Internal pressure <4.5MPa | DN20~700mm: <2.5MPa | Unrelated to pipe pressure; not recommended for submerged work |
| DN800~2000mm: <1.6MPa | |||
| Sensor Protection Class | IP68 | ||
| Transducer Protection Class | Wall-mounted: IP65 | ||
| Panel-mounted: IP52 | |||
| Integrated: IP67 | |||
| Explosion-Proof Rating | Exd II BT6 | ||
| Sensor Length | <500m | <500m | <300m |
| Sensor Cable Model | Special cable SEV7-75-2 (diameter 7mm); shorter cables reduce interference; can be extended to 3000m (additional cables required) | ||
| Working Power Supply | AC220V, DC12~36V 0.8A (optional) | ||
| Transducer Dimensions | Wall-mounted: 213×185×107mm | ||
| Panel-mounted: 160×80×250mm | |||
| Integrated: 185×140×100mm | |||
| Sensor Dimensions | 220×a20 (component)×a50 (connection part) mm | See pipeline sensor data sheet | 60×40×35mm |
| Transducer Weight | Wall-mounted: 1.2kg | ||
| Panel-mounted: 0.8kg | |||
| Integrated: 1.4kg | |||
| Sensor Weight | 0.7kg/piece | See pipeline sensor data sheet | 0.2kg/piece |
| Heat Measurement Function | Measures heat supply, heat consumption, inlet temperature, outlet temperature | ||
Ultrasonic Flowmeter Selection Table
| HQTDS | ultrasonic flowmeter | ||||||||||||
| Range | □ | DN15~DN400 | |||||||||||
| Type | A | Fixed ultrasonic flowmeter (standard type) | |||||||||||
| B | Insertion-type ultrasonic flowmeter | ||||||||||||
| C | Portable ultrasonic flowmeter | ||||||||||||
| D | Handheld ultrasonic flowmeter | ||||||||||||
| E | Piping type ultrasonic flowmeter | ||||||||||||
| F | Ultrasonic open channel flowmeter | ||||||||||||
| G | Wireless remote-transmitting ultrasonic flowmeter | ||||||||||||
| H | Solar-powered ultrasonic flowmeter | ||||||||||||
| Flow range | (n) | Upper limit flow (range)m3/h | |||||||||||
| Measuring medium | A | High-temperature liquid | |||||||||||
| B | Ordinary liquid | ||||||||||||
| Pressure rating | 1 | 1.0mpa | |||||||||||
| 2 | 1.6mpa | ||||||||||||
| 3 | 2.5mpa | ||||||||||||
| 4 | 4.0mpa | ||||||||||||
| Output signal | N | no-output | |||||||||||
| A | 4-20mA | ||||||||||||
| F | Frequency output | ||||||||||||
| R | RS485 | ||||||||||||
| R | Pulse output | ||||||||||||
| T | OCT | ||||||||||||
| Installation | B | Portable | C | Plug-in | |||||||||
| E | Exterior-mounted | S | Handle | ||||||||||
| F | Separate flange | Y | Integrated flange connection | ||||||||||
| Measurement accuracy | 1 | 0.5 | |||||||||||
| 2 | 1 | ||||||||||||
| 3 | 1.5 | ||||||||||||
| Explosion-proof | 1 | No explosion-proof feature | |||||||||||
| 2 | Explosion-proof (EX) | ||||||||||||
| Power supply | A | AC220V | |||||||||||
| B | Battery | ||||||||||||
| C | DC24V | ||||||||||||
| D | DC24V | ||||||||||||
